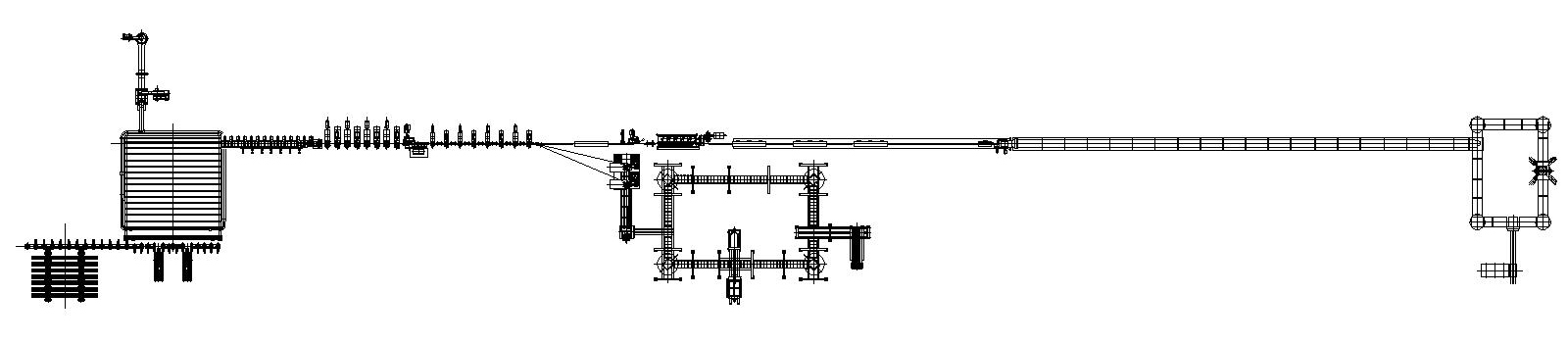

WIRE ROD ROLLING MILL



PLANT CAPACITY 300'000 – 1’500'000 tons/year
STARTING BILLET SIZE 130x130mm up to 160x160mm / 6 – 12 - 16 m
FINAL PRODUCT Wire rod 5 – 18 mm
Garret line 20 – 50 mm
ROLLING SPEED Max 120 m/s (5 mm)

* indicative data

Thanks to 4 different typologies of fast finishing blocks for wire rod proposed by PERT, each wire rod rolling mill, whichever is the capacity, can be provided “taylor-made” according to customer’s requirements.

Ours PERT WIRE ROD BLOCK and PERT 2xTECHNOLOGY No-Twist® Finishing Block are designed with configuration at 90° (for speed up to 80 m/s) and 45° (for speed up to 120 m/s) and for one or two strand rolling. The wide range of fast finishing blocks typologies allows us to operate from small plants (200’000 t/y) to very large plants (PertGigaMill® 2'000'000 t/y) at 1,2 or 4 strands.

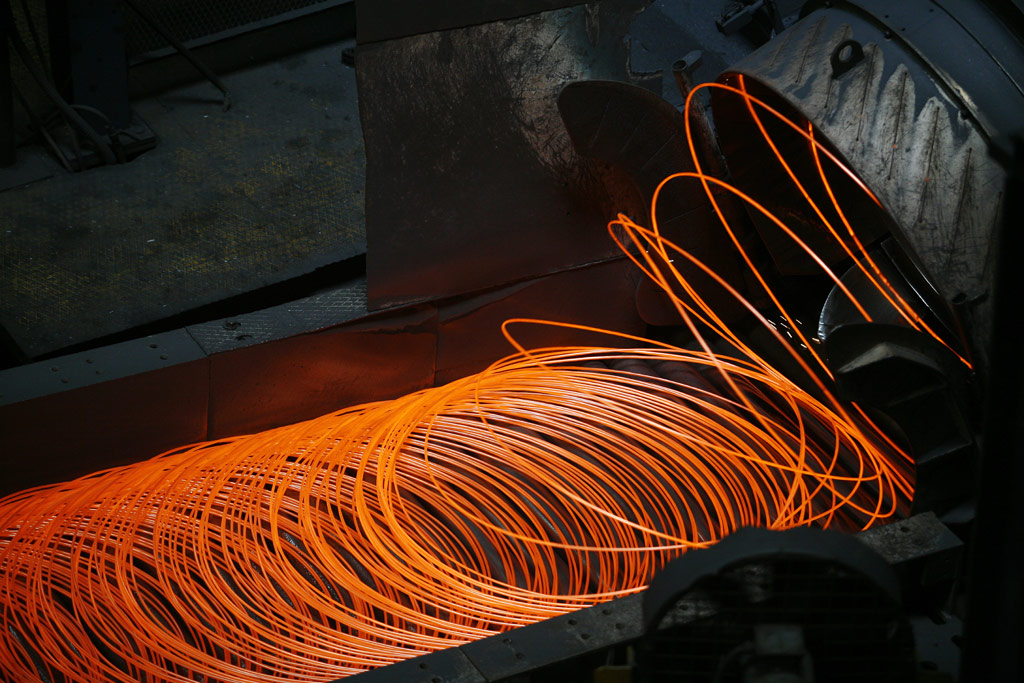

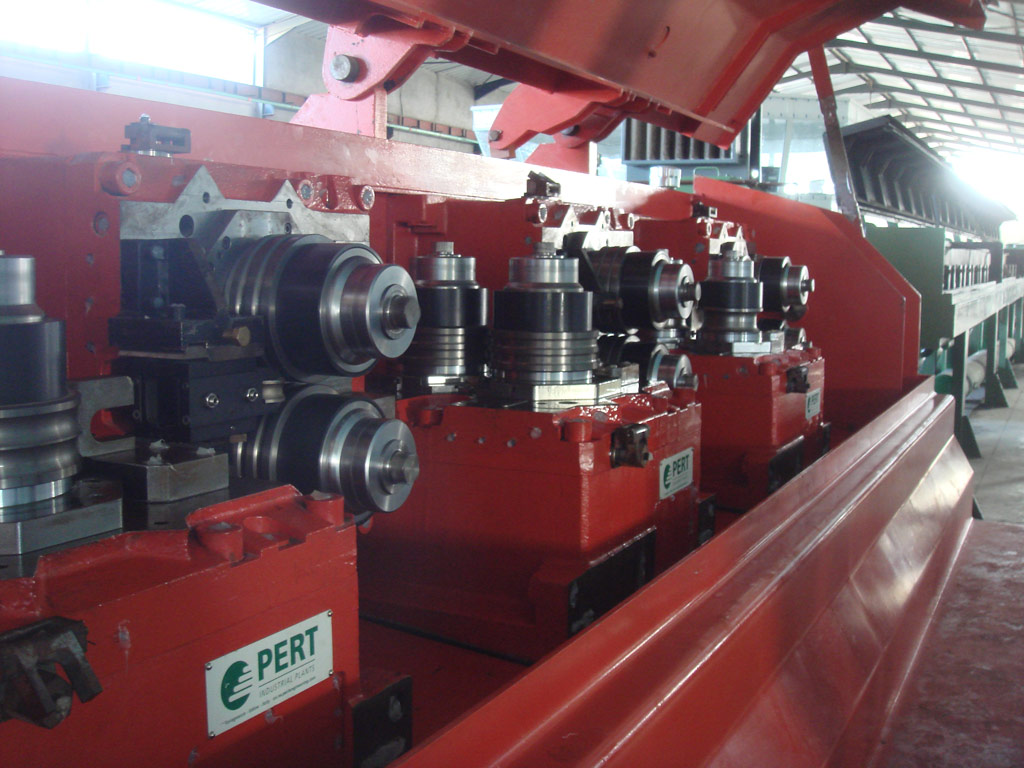

The rest of the plant will be equipped with PERT BS STAND on configuration H/V, laying head designed by PERT for speed up to 120 m/s and with cooling conveyor designed according to the steel grade and the quality required for finished product.
